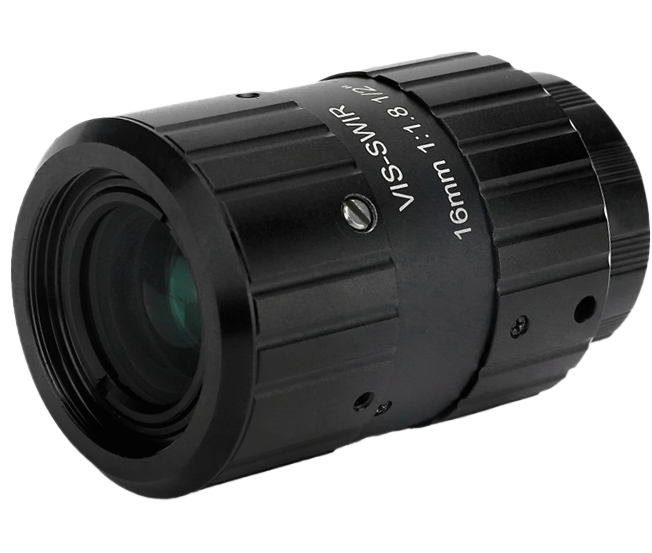

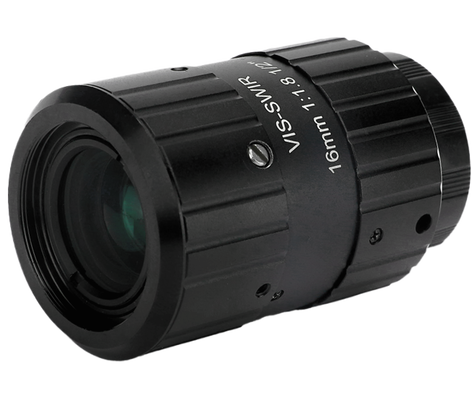

High Resolution Line Scan Lens 16mm for Machine Vision and Inspection Systems

High Resolution Line Scan Lens 16mm for Machine Vision and Inspection Systems

Product Description:

The 16MP/20MP FA Lens is a premium quality Line Scan FA Optical Lens designed to meet the demanding requirements of industrial imaging applications. Engineered with precision and crafted from high-quality optical glass, this lens delivers exceptional optical performance, ensuring sharp, clear, and distortion-free images. It is an ideal choice for users seeking reliable and high-resolution imaging solutions in various industrial and scientific fields.

Featuring a robust C Mount, this Line Scan FA Optical Lens is compatible with a wide range of line scan cameras, making it a versatile component for many imaging systems. The C Mount standard ensures easy integration and secure attachment to your line scan camera, providing stability and precision during operation. This lens is particularly well-suited for line scan camera setups requiring high pixel density and superior image quality, such as those utilizing 16MP or 20MP sensors.

The lens boasts an aperture range from F1.8 to F16, offering excellent control over the amount of light entering the optical system. This wide aperture range allows for flexibility in various lighting conditions, enabling users to optimize image brightness and depth of field according to their specific needs. Whether working in low-light environments or requiring greater depth of field for detailed inspection, the 16MP/20MP FA Lens performs reliably and efficiently.

One of the standout features of this Line Scan Camera Lens 20MP is its advanced anti-reflective coating. This coating significantly reduces reflections and glare, enhancing light transmission through the lens and minimizing unwanted artifacts in captured images. The anti-reflective coating improves contrast and color fidelity, ensuring that the images produced are crisp and accurate. This feature is especially critical in precision applications where image clarity and detail are paramount.

Constructed from high-quality optical glass, the 16MP/20MP FA Lens ensures durability and longevity in industrial environments. The optical glass used in this lens is carefully selected and processed to maintain optimal clarity and minimize optical aberrations. This results in superior image quality and consistent performance over time, even under continuous use. The lens construction meets the stringent demands of industrial imaging, providing a reliable solution for quality control, inspection, and machine vision applications.

Designed to operate within the standard industrial temperature range, the lens maintains its optical performance across a variety of environmental conditions. This operating temperature range ensures that the lens can be used effectively in factory floors, production lines, and other industrial settings where temperature fluctuations are common. The lens’s resilience to temperature changes makes it an excellent choice for long-term deployment in challenging environments.

Overall, the 16MP/20MP FA Lens is a highly capable Line Scan FA Optical Lens engineered for high-resolution imaging with line scan cameras. Its combination of a C Mount, anti-reflective coating, high-quality optical glass, adjustable aperture, and industrial operating temperature range makes it a reliable and flexible solution for diverse imaging needs. Whether you are upgrading your existing line scan system or designing a new imaging setup, this lens provides the optical excellence and durability required for professional-grade results.

In summary, the 16MP/20MP FA Lens stands out as an essential component for anyone utilizing line scan camera technology. Its design and features cater specifically to the needs of high-resolution line scan imaging, delivering outstanding image quality and operational stability. If you are looking for a superior Line Scan Camera Lens 20MP that combines precision engineering with practical functionality, this lens is an excellent choice that will meet and exceed your expectations.

Features:

• Product Name: 16MP/20MP FA Lens, Line scan lens
• Resolution: 16MP & 20MP, suitable for High Resolution Line Scan Lens applications
• Designed for Line Scan Camera Lens 20MP systems
• Type: Line Scan FA Optical Lens
• Minimum Object Distance (MOD): 0.1M
• Back Focal Length (BFL): 13mm
• Operating Temperature Range: Standard Industrial Range
• Temperature Range: -10~50°C

Technical Parameters:

Applications:

The Octavia MR-C1602BD-118 is a high-quality Line Scan FA Optical Lens designed to meet the demanding requirements of industrial imaging applications. With a resolution capability of up to 16MP/20MP, this Line Scan Camera Lens 20MP offers exceptional clarity and precision, making it ideal for detailed inspection and quality control processes. Manufactured in Shenzhen, China, this lens combines advanced technology with reliable engineering to deliver outstanding performance in various line scan imaging scenarios.

The Line Scan FA Optical Lens is perfectly suited for use in automated manufacturing lines where high-speed and high-accuracy image capture is critical. Its C Mount design ensures compatibility with a wide range of line scan cameras, providing flexibility for diverse industrial setups. The anti-reflective coating applied to the lens surfaces minimizes glare and ghosting, enhancing image quality even in challenging lighting conditions. This feature is particularly important in applications such as electronics inspection, textile analysis, and surface defect detection.

Operating reliably within a standard industrial temperature range of -10 to 50°C, the MR-C1602BD-118 lens is built to withstand the environmental challenges commonly encountered in factory floors and production lines. The robust build coupled with a precise filter screw size of M28.5*0.5 allows for easy integration of additional optical filters if required, further expanding its versatility in various inspection tasks.

This Line Scan FA Optical Lens is widely used in scenarios such as semiconductor wafer inspection, printed circuit board (PCB) quality checks, food and pharmaceutical packaging inspection, and material surface analysis. Its ability to deliver uniform sharpness and minimal distortion makes it indispensable for applications that demand high-resolution imaging and reliable data acquisition. Whether deployed in high-speed sorting machines or detailed line-by-line scanning systems, the Octavia MR-C1602BD-118 lens ensures consistent, precise performance.

In summary, the Octavia MR-C1602BD-118 Line Scan Camera Lens 20MP is an excellent choice for industries requiring meticulous imaging solutions. Its advanced optical design, durable construction, and compatibility with standard industrial environments make it a preferred option for professionals seeking reliable and high-performance line scan FA optical lenses.

Customization:

Octavia presents the MR-C1602BD-118, a high-performance Line Scan FA Optical Lens designed for precise imaging needs. This 16MP/20MP FA Lens is engineered specifically for line scan imaging applications, delivering exceptional clarity and resolution.

The Line Scan Camera Lens 20MP model offers a versatile lens aperture ranging from F1.8 to F16, allowing optimal light control and depth of field for various industrial environments. Built to operate within a temperature range of -10~50°C, it ensures reliable performance even under challenging conditions.

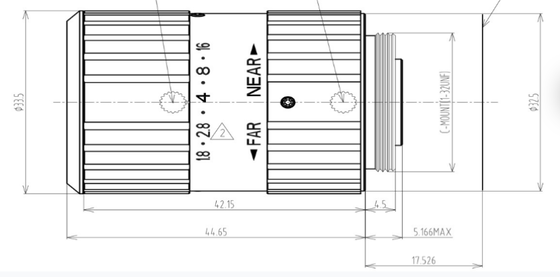

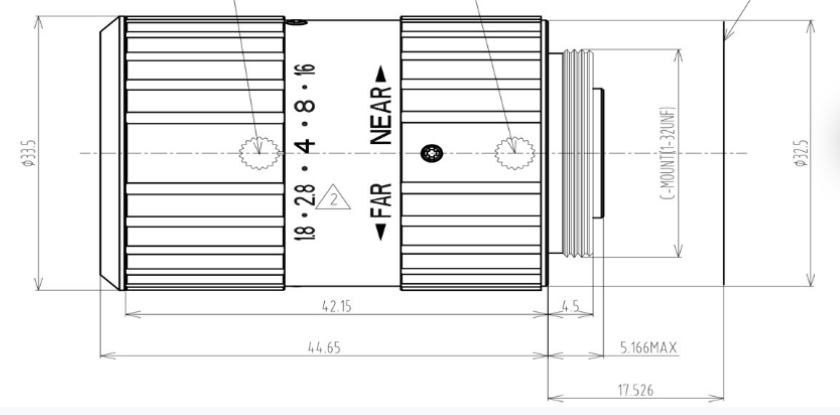

Manufactured in Shenzhen, China, the MR-C1602BD-118 features a minimum focus length (MFL) of 17.526mm in air, enhancing precision in line scan applications. As a premium Line Scan FA Optical Lens, it is ideal for integration with high-resolution imaging systems requiring 16MP and 20MP capabilities.

Octavia’s product customization services provide tailored solutions to meet specific customer requirements, ensuring the Line Scan Camera Lens 20MP and 16MP variants are optimized for your unique industrial and imaging needs.

Support and Services:

Product Technical Support and Services for the 16MP/20MP FA Lens, Line Scan Lens:

Our technical support team is dedicated to providing comprehensive assistance to ensure optimal performance of your 16MP/20MP FA Lens, Line Scan Lens. We offer detailed guidance on installation, configuration, and maintenance to help you achieve the best imaging results.

We provide documentation and resources including user manuals, specification sheets, and application notes tailored to the 16MP/20MP FA Lens, Line Scan Lens. These materials are designed to assist with understanding lens capabilities and integration into your imaging systems.

Technical support is available to troubleshoot and resolve any issues that may arise during the use of the lens. Our experts can assist with optical alignment, focusing techniques, and compatibility with various line scan cameras and systems.

Additionally, we offer firmware updates and calibration services to maintain the precision and quality of your lens over time. Our team can also provide consultation on customizing lens solutions to meet specific application requirements.

For optimal product performance, we recommend regular maintenance checks and adherence to handling guidelines provided in the product documentation. Our support team is ready to guide you through best practices to extend the lifespan and reliability of your 16MP/20MP FA Lens, Line Scan Lens.

Whether you are integrating the lens into a new system or optimizing an existing setup, our technical support services are designed to ensure your success with the 16MP/20MP FA Lens, Line Scan Lens product.

Packing and Shipping:

Product Packaging:

The 16MP/20MP FA Lens and Line Scan Lens are carefully packaged to ensure maximum protection during transit. Each lens is securely placed in a custom-fit foam insert within a sturdy, high-quality cardboard box. The packaging includes anti-static and moisture-resistant materials to safeguard the lens from environmental factors. Additionally, the box contains a user manual and a warranty card.

Shipping:

We offer reliable and fast shipping options worldwide. The lenses are shipped via trusted courier services with tracking information provided upon dispatch. Depending on the destination, standard and expedited shipping methods are available. All shipments are handled with care to prevent any damage, and insurance options can be selected for added security. Delivery times may vary based on location and shipping method chosen.

FAQ:

Q1: What is the brand and model number of this line scan lens?

A1: The line scan lens is from the brand Octavia, and the model number is MR-C1602BD-118.

Q2: What are the megapixel specifications of this lens?

A2: This lens supports 16MP and 20MP resolution, making it suitable for high-definition imaging applications.

Q3: Where is the Octavia MR-C1602BD-118 lens manufactured?

A3: This lens is made in Shenzhen, China.

Q4: What type of lens is the MR-C1602BD-118?

A4: The MR-C1602BD-118 is a FA (Fixed Aperture) line scan lens designed for precise imaging in industrial and scientific applications.

Q5: Is this lens compatible with all line scan cameras?

A5: The MR-C1602BD-118 lens is designed to be compatible with line scan cameras that support its mount and sensor size, but it is recommended to check the camera specifications for compatibility.
